Helical solid finned tubes

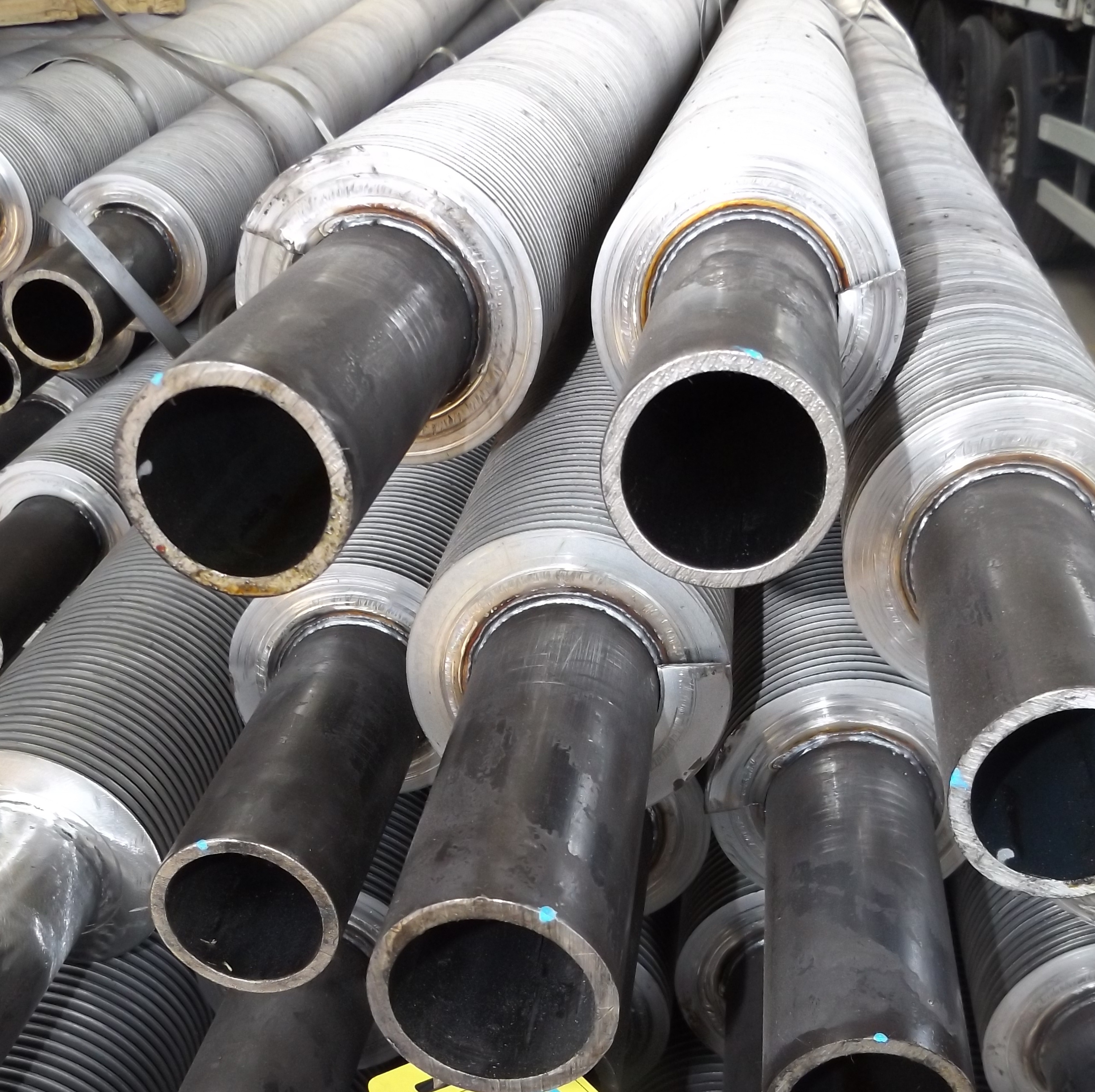

HELICAL FINNED PIPES

(PIPE Ø 51,3mm - FINS H.19mm) IN ASTM A210 GR.A1 FOR ECONOMISER

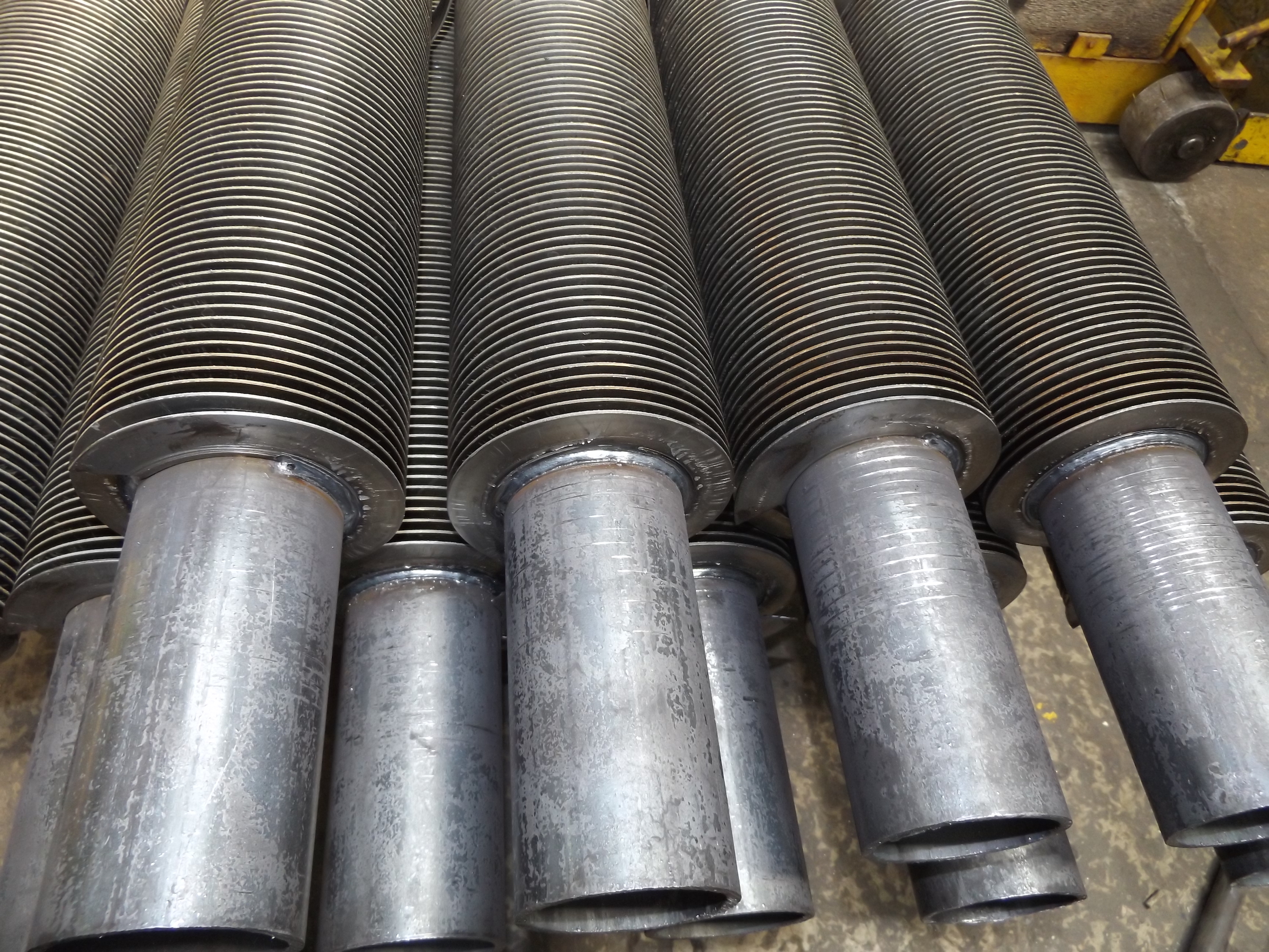

HELICAL FINNED PIPES

(PIPE Ø 63,5mm - FINS H.20mm) IN ASTM A210 GR.A1 FOR ECONOMISER

HELICAL FINNED PIPES

HELICAL FINNED PIPES

Welded Helical solid finned tubes are very used in petrochemical field and industrial boilers to heat (heaters) or cool (coolers) or to recuperate heat from industrial fumes. Our finned pipe has a fin strip wrapped and continuously welded onto the outside surface of the tube by means of MIG welding technique. This process gives a very high heating transfer coefficient, about 4-5 times higher than other conventional types of finning, because of the continuity between tube and fin strip materials. If you add the possibility to weld each other very different materials, you can consider an optimum product adaptable to numerous uses and different environments. We are always available to try new technical solutions on Clients requests. For possible combinations of materials and dimensions you can find below some information about the most used configurations.



Technical Product Sheet:

  • Tube/Pipe size

    16 mm to 273 mm (10”) and more on request

  • Tube/Pipe Material

    Carbon Steel (A106, A333, A179, A210, P5, P11, P22) + Stainless Steel (304, 316, Duplex, Super Duplex) + Nickel Alloys ( Monel 400, Inconel 625)

  • Fin Material

    Carbon Steel (A106, A333, A179, A210, P5, P11, P22) + Stainless Steel (304, 316, Duplex, Super Duplex) + Nickel Alloys ( Monel 400, Inconel 625)

  • Fin Height

    10 mm to 25 mm and more on request

  • Fin Thickness

    1,2 to 1,5 mm

  • Number of Fins

    from 80 fins/meter to 230 fins/meter
