Tube Coils

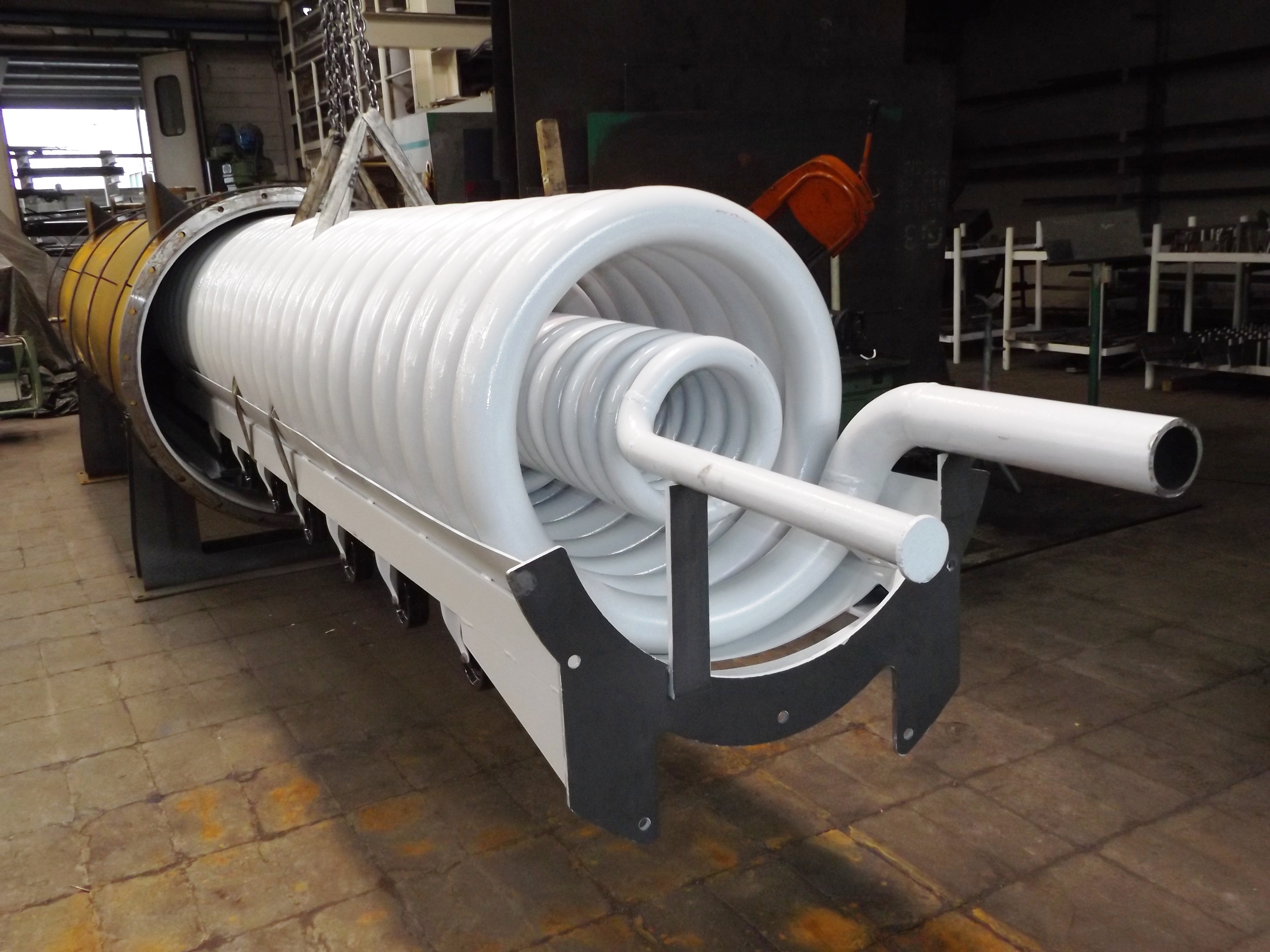

MULTIPLE COIL 3 STAGES

(4”-11,13mm x 2”-8,74mm) FOR GPL EVAPORATOR

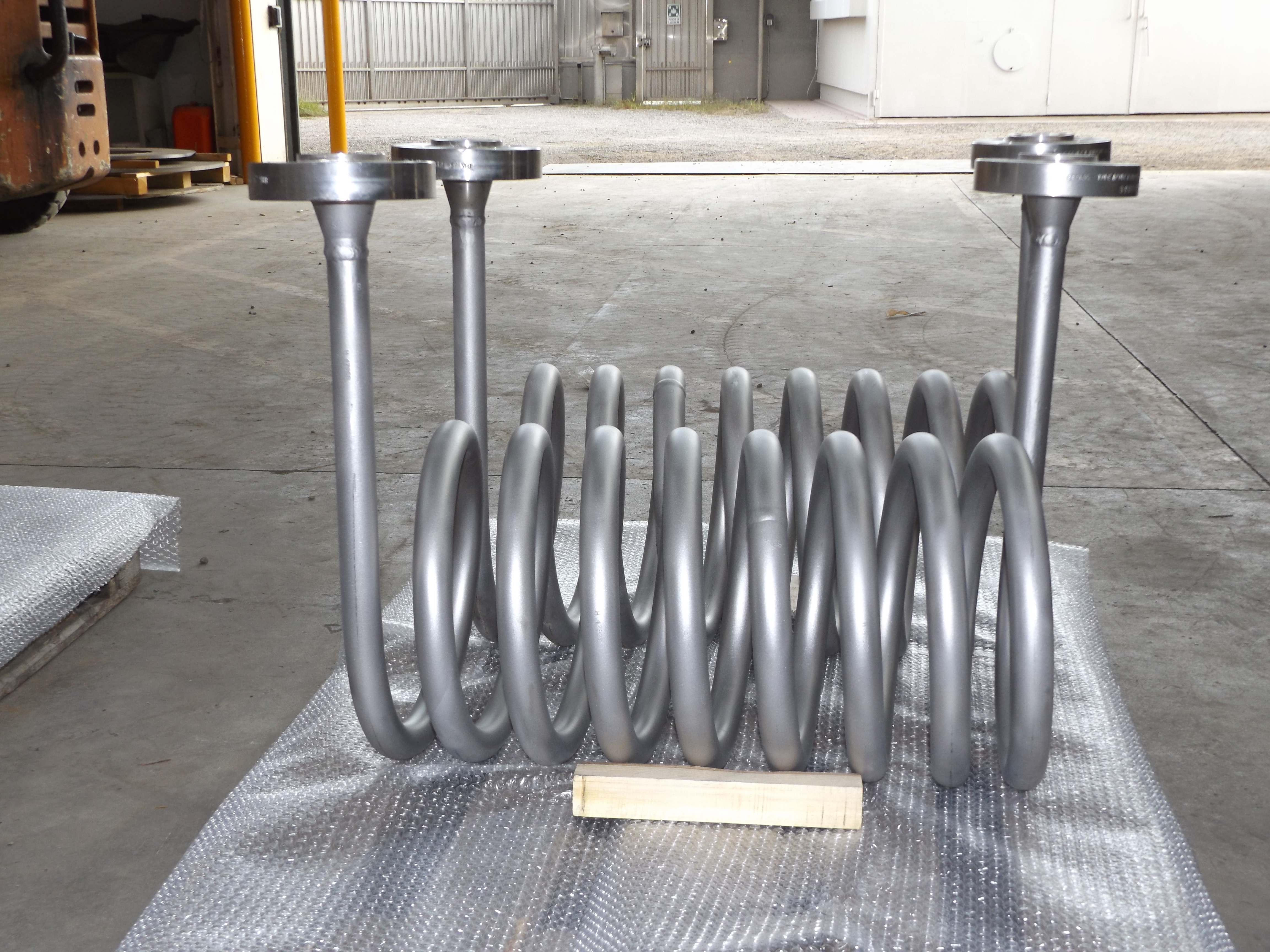

COIL TUBES

(1-1/2” X 10,13 mm) IN 316L FOR CAST ALUMINUM HEATERS

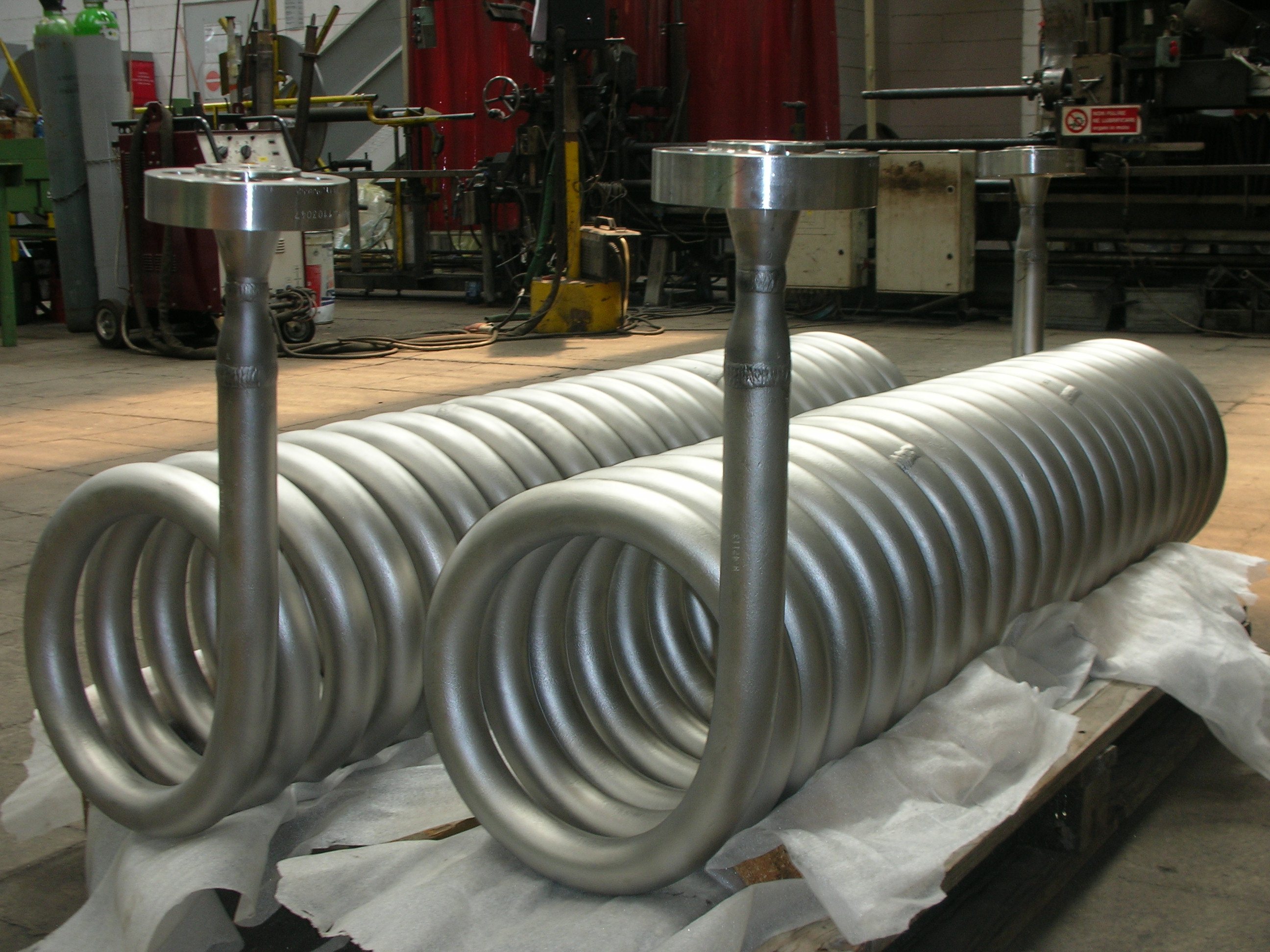

COIL TUBES

(1” X 9,09 mm) IN 316L FOR CAST ALUMINUM HEATERS

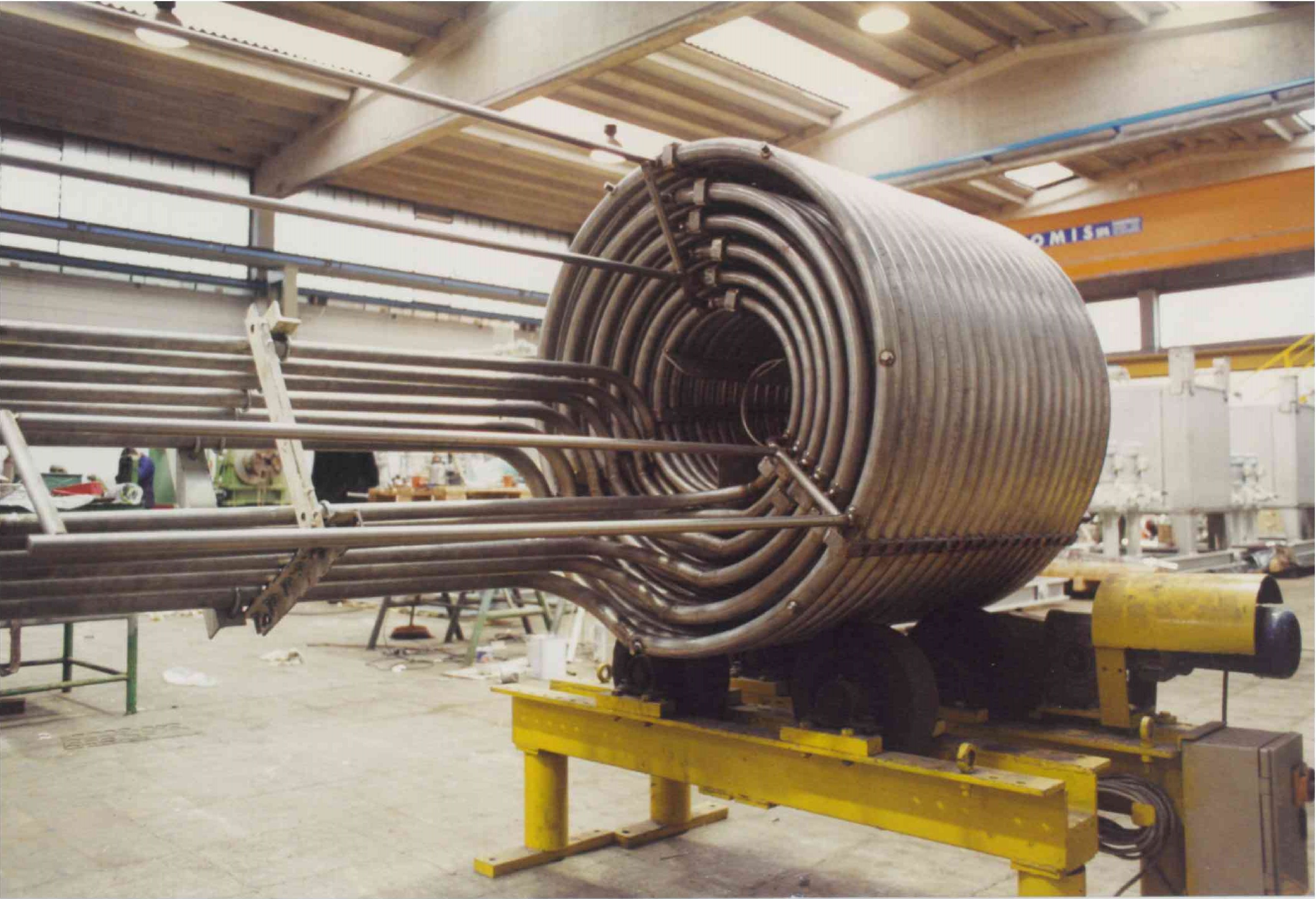

MULTIPLE COIL 6 STAGES

(1 ½ ”-1 ¼”-1”- ¾ “)IN 316L FOR LETHAL GAS

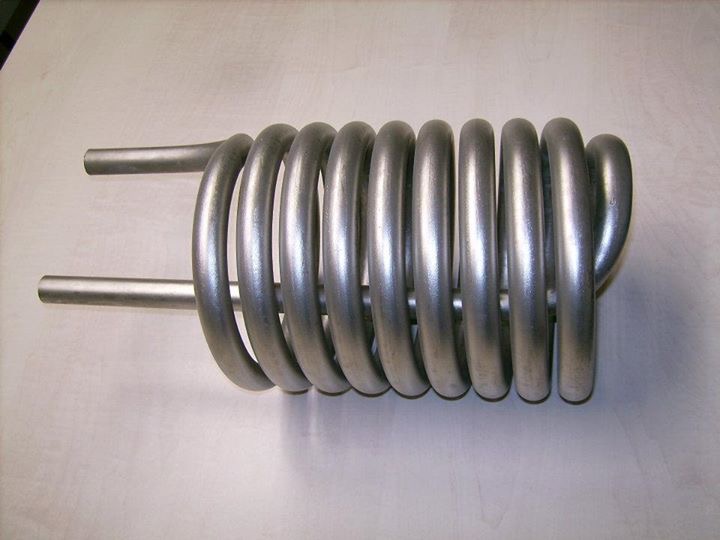

COIL TUBE FROM ONE SINGLE PIPE

(1/2” X 3.73 mm) IN 316L

Tube Coils are widely used in various configurations, due to requested characteristics. Our tube coils are “tailor made” on Customer needs and on specific process request. We can realize extremely small radius spirals on pipes with OD and thickness hard to be bent. All the bends are always cold made and fit dimensional values according to TEMA and ISO specifications. Hydraulic tests up to 1000 bar guarantee their quality and efficiency with the passing of time. Our tube coils are widely used with electric resistances inside aluminum cast heaters for direct and indirect connect process heaters. We can realize tube coils in various materials : Copper and Copper Alloys, Carbon Steel, Stainless Steel, Duplex, Super Duplex, Inconel 625. Following some technical details:



Technical Product Sheet:

  • Dimensions

    Pipe OD from 6 mm intermediate diameter 24 mm, to pipe OD 4” (114,3 mm) intermediate diameter 500 mm

  • Thickness

    From 0,8 mm with pipe OD 6mm to 11,14 mm with pipe OD 4” (114,3 mm)

  • Number of spirals

    All possible up to 3 meters of length for a coil tube

  • Pitch of spirals

    Depending on Customers’ requests
