Special Radius Elbows

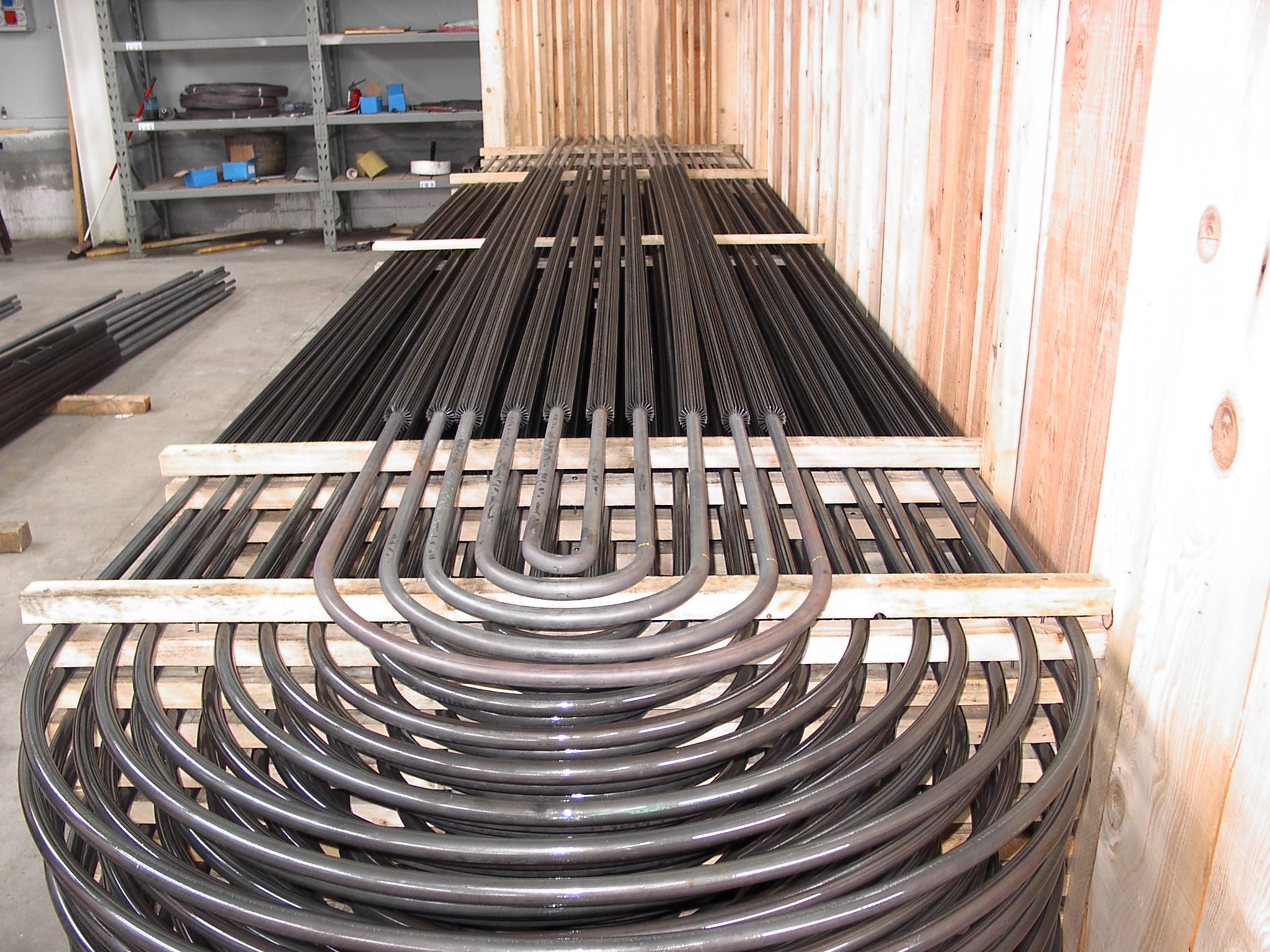

VARIOUS RADII COLD BENT TUBES

Ø 25,4mm IN SA-334 GR.6 FOR HEAT EXCHANGERS

VARIOUS RADII COLD BENT TUBES

IN A333 GR.6 Ø ½”-1 ½”-2”-3”-6” FOR VERTICAL UPPER HOPPER FINNEDTUBES FOR NITROGENCOOLING

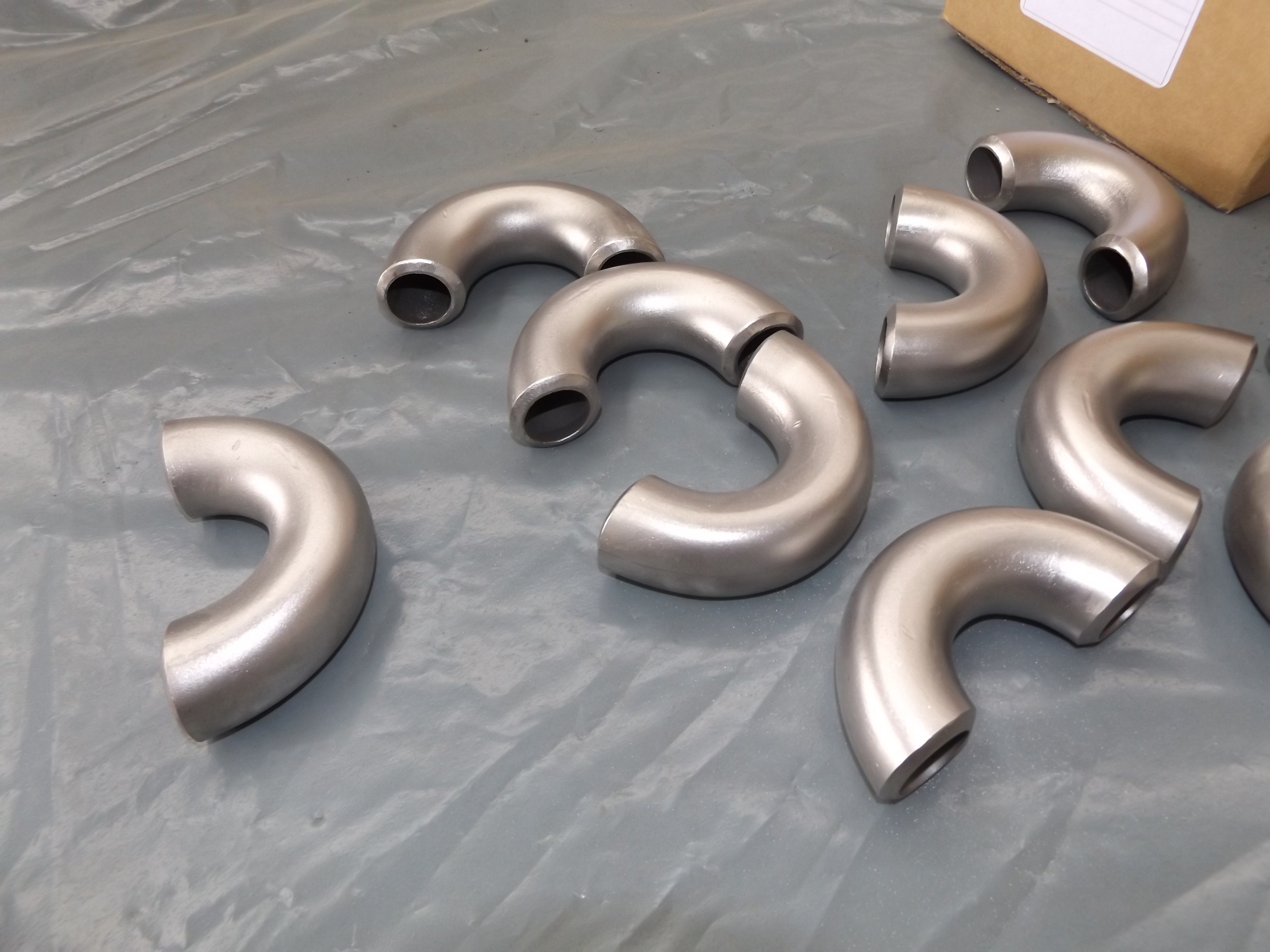

ELBOWS 180° COLD BENT LONG RADIUS

1” SCH.80S IN 316L

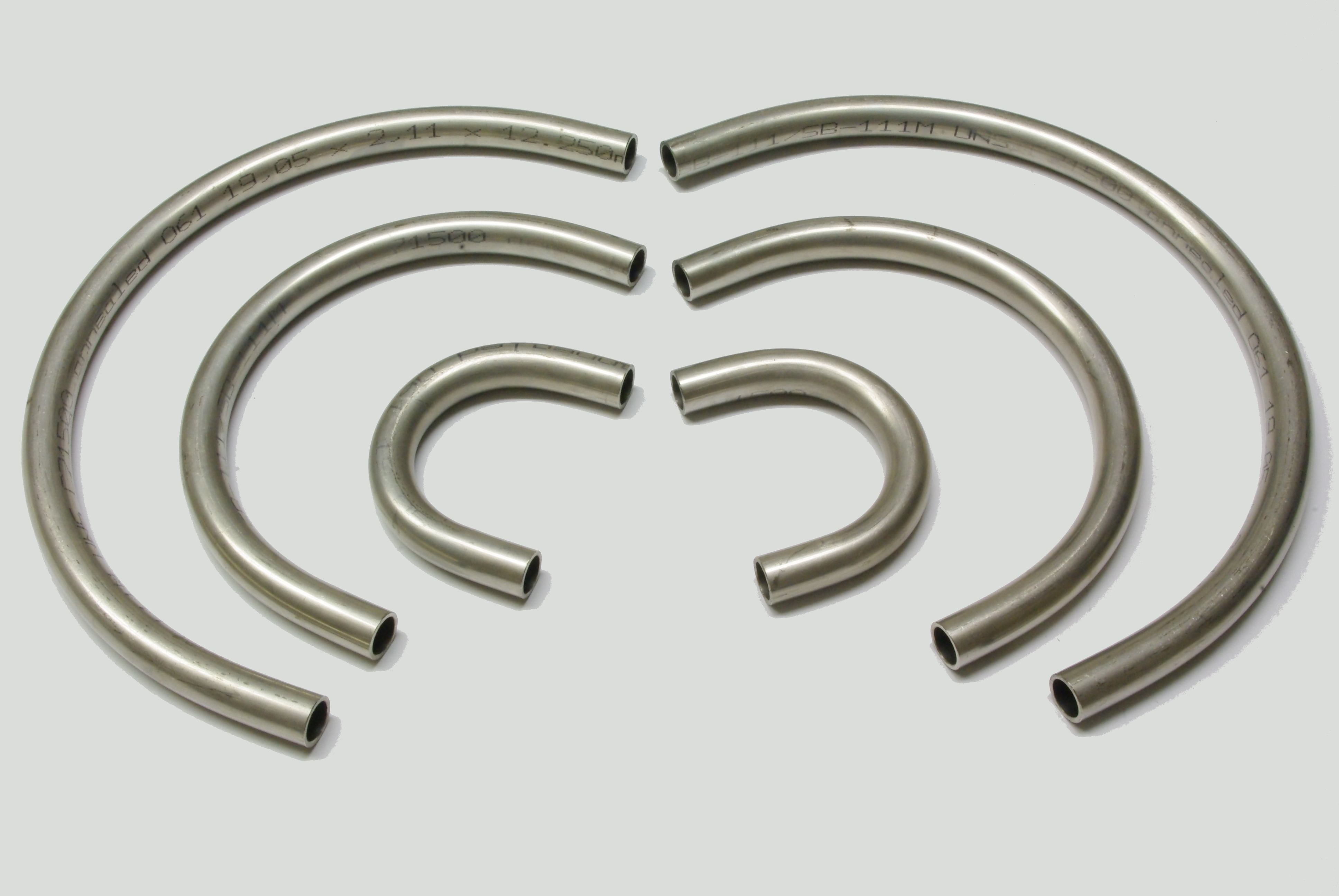

ELBOWS 180° COLD BENT SPECIAL RADII

19,05 X 2,11 mm IN CUPRONICKEL 70/30

Special bends that we do are applicable on tubes for heat exchangers (hairpins) or for spool piping. The bends that we manufacture can be from 30° to 180° and are always cold made. We have a series of molds that give us the possibility to realize almost all non standard radii on tubes with OD and thickness as follows. Copper and Copper Alloys, Carbon Steel, Stainless Steel, Duplex and Super Duplex. Following some technical details.





Technical Product Sheet:

  • Tube OD 6÷ 10 mm minimum medium radius or bends from 30° to 180° : 24 mm

  • Tube OD 15 ÷ 19,05 mm minimum medium radius for bends from 30° to 180° : 23 mm

  • Tube OD 20÷ 21,3 mm minimum medium radius for bends from 30° to 180°: 30 mm

  • Tube OD 25,4 mm minimum medium radius for bends from 30° to 180°: 28 mm

  • Tube OD 26,7 mm minimum medium radius for bends from 30° to 180°: 35 mm

  • Tube OD 33,4 mm minimum medium radius for bends from 30° to 180°: 38 mm

  • Tube OD 48,3÷ 60,3 mm minimum medium radius for bends from 30° to 180°: 60 mm

  • Tube OD 88,9 mm minimum medium radius for bends from 30° to 180° : 191 mm

  • Tube OD 114,3 mm minimum medium radius for bends from 30° to 180° : 250 mm

  • Tube OD 6” (168,3 mm ) minimum medium radius for bends from 30° to 180°: 457 mm

  • With all other tubes BWG and ANSI standard we can do a complete series of radii and on request any other particular non standard radius
